HANNSTAR GALVALUME STEEL

Galvalume roll jacketing outlasts regular galvanized steel in marine salt spray and industrial atmospheres for a longer lasting installation. Since it can be used at temperatures up to 600°F (315°C)withoutdiscoloration, and up to 1250°F (677°C) without heavy oxidation or scaling, it provides superior fire resistance and protection compared to aluminum.The special alloy coating of aluminum and zinc combines the best properties of both metals; it has the corrosion resistance, high temperature oxidation resistance, and heat reflectivity of aluminum with the formability and galvanic protection of cut edges characteristic of zinc.


GALVALUME STEEL QUALITY PROMISE

HANNSTAR INDUSTRY COMPANY LIMITED is a professional production and processing, sales, service as one of the high-tech enterprises, mainly involved in COLD ROLLED STEEL COIL , GALVANIZED STEEL COIL , GALVALUME STEEL COIL , ALUZINC STEEL COIL, PREPAINTED GALVAINZED/ALUZINC STEEL COIL ,TINPLATE COIL , AND OTHERS for over 14 years. There is a reason why customers continue to do so. Doing business with us over and over again and calling us "the best".


SUGGESTED GALVALUME STEEL SPECIFICATION

All insulation shall be weatherproofed with JM's Galvalume jacketing. The jacketing is to be manufactured from low carbon cold rolled steel having a continuous hot dipped aluminum-zinc alloy coating applied to the outer surfaces, and the finish shall be smooth or stucco-embossed, and/or 3/16 inch corrugated. All jacketing shall have an integrally bonded moisture barrier over the entire surface in contact with the insulation. A thickness of .016 inch shall be used on piping, tanks and equipment.


Coil Weight

  Particulars

  Coil Weight (MT)

  AFP Coated

  2.00-8.00

  Non AFP Coated

  2.00-25.00

  Eye to Sky

  2.00-7.00

  Packet Weight

  5.00 mt (max)

Width Tolerance

  Width Range (mm)

  JSW Capability (mm)

  ASTM A 792/A792M (mm)

  50-600 (slit edge)

  -0/+0.50 (slit)

  +3/-0

  600-1200

 Slit Edge - 0/+0.5  Mill Edge - 0/+5



  +5/-0

  1200-1260

 Slit Edge - 0/+0.5  Mill Edge - 0/+5



  +6/-0

Al Zinc Coating

  Al Zinc coating

  Minimum Triple Spot Average (Total both sides) g/m2

  70 Gsm

  70

  150 Gsm

  150

  165 Gsm

  165

  180 Gsm

  180

  200 Gsm

  200

Mass Per Unit Area And Coated Thickness

  Metric Coating Designation

Minimum Triple Spot Average  (Total both sides) g/m2

Thickness (per Side) um

  Z 275 (G90) Galvanized

  275

  19.7

  AZM 150 (AZ 50) Galvalume® Sheet

  150

  20.4

  AZM 165 (AZ 55) Galvalume® Sheet

  165

  22.5

  AZM 180 (AZ 60) Galvalume® Sheet

  180

  24.5

  AZM 210 (AZ 70) Galvalume® Sheet

  210

  28.6

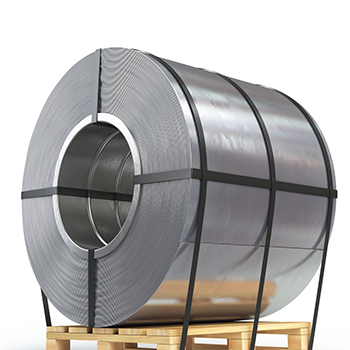

HANNSTAR GALVALUME STEEL PACKAGING SERVICE

HANNSTAR offers its products with effective packaging as per customer requirements and in compliance with international norms. Emphasis is placed to ensure durability, prevention of any damage during transportation and
better storage. HANNSTAR with its years of experience and regular benchmarking with various national and international companies, endeavors to improvise packaging in accordance with changing customer needs.
HANNSTAR has a stringent procedure for evaluating the competency level of suppliers for packaging material. Material
quality is verified at the well-equipped and sophisticated HANNSTAR laboratory before offering for use.

The packing requirements for export and domestic markets are different. However, the type of packaging is
determined in consideration of the following points:
galvalume-steel
/
Customer needs
1
/
Duration of transportation
2
/
Environmental conditions during transit
4
/
Handling during transit​​​​​​​
5
/
Handling at customer's premises​​​​​​​
3
/
Storage practices​​​​​​​
6
/
International regulation on package material

WHY CHOOSE HANNSTAR GALVALUME STEEL

There are many advantages in purchasing galvanized steel sheet, galvanized aluminum profile and nickel-chromium coil from the HANNSTAR INDUSTRY.


QUALITY ASSURANCE

QUICK QUOTATION

COMPETITIVE PRICE

HIGH CUSTOMER SATISFACTION

OVER 14 YEARS OFEXPERIENCE

ONE-STOP SHOP SERVICES
